IN-F100
Body composition Analyzer

User friendly interface and intelligent voice guidance lets you easily take the INBCA test and analyze results. Provide customized consultation with the segmental circumference, segmental lean analysis and segmental fat analysis. You can also check with what kind of body type with INBCA IN-F100 , which is determined by BMI and body fat. Understanding your body type will help you make a better diet and exercise plan, and set realistic, achievable, goals that pave the way to your success.


Advantage

  • Human data model (more than 40 set testing data)
  • DSM-BIA technology (8 electrodes )
  • Multi-language selection, free switching between bilingual screens
  • Dual mode for members and visitors
  • 8 inches LCD Touch screen
  • Thermal printing  58mm ticket

Print report

Print report

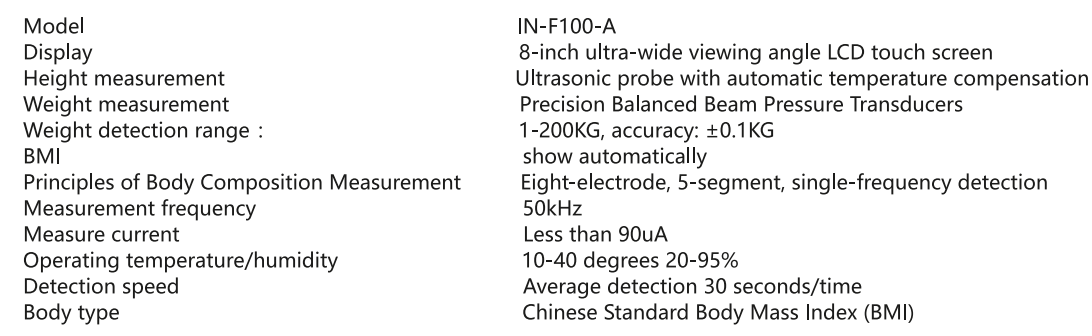

Technical parameter

Function parameter
Model IN-F100
Test Range Gender: Male/ Female
Age range: 18-99 years old
Temperature: 10-40°
Moderate 10-85RH
Login Method Coin
Swipe IC card optional
Display Led 300 nit 8 inch,Resolution:1024*768
Height Measurement method: Industrial grade ultrasonic measurement (including temperature compensation)
Test Range Height:70~210cm
Weight Measurement method: Weighing with precision balanced beam pressure sensor
Measuring range: Weight:0.1~400Kg
Maximum weight: Less than 500Kg
Measurement accuracy: ±0.1Kg
Fat measurement Measuring system 8 electrode
Measuring frequency 5K/10K/25K/50K/100K/250KHz
Analysis Project Body fat, visceral fat, body water, muscle, bone mass
Material Plating materials
Measuring current Below 90μA
Resistance 75.0~1,500.00Ω(0.1ΩUnit)
Measuring parts Body, right leg, left leg, right arm, left arm
Data transmission RS232 serial port
OEM/ODM Yes
Voltage 110-220V
Rated power 50-60HZ




IN-F100 comparison

IN-F100-A

IN-F100-B

Weight

Weight

Body fat

Body fat

58mm ticket

58mm ticket

Without coin

With coin
